FULLY AUTOMATIC CONCRETE BATCHING PLANT
STATIONARY CONCRETE BATCHING PLANTS

STATIONARY CONCRETE BATCHING PLANTS

ASHISH is exporter of Wet mix macadam plant and also heavy civil equipment manufacturers company in India. Soil stabilization machine is also available with cement addition. Buy quality road constructio machines from Gujarat

Model 20
ACE
30
ACE
45
ACE
60
ACE
90
ASCE
Capacity 20 m3/hr. 30 m3/hr. 45 m3/hr. 60m3/hr. 90 m3/hr.

Stationary concrete batching plants by ASHISH as renowned for their performance, productivity, accuracy and After sales service. The user friendly software and simple design makes these equipment one of the best in the Industry. We also have mobile concrete plants on offer. Our plants are suitable for Indian operating conditions And that the equipment is developed in such a way that it performs for years.

Concrete Batch plants India

Concrete Batch plants India

ASHISH concrete plants and batch plants are available as stationary versions also. Supplier of Concrete manufacturing quality machines up to 90 m3/hr. Concrete Mixer of fixed types manufacturer in India offers for sale quality and proven Indian machines.

The plants offered are for customers looking for a simple and reliable equipment built by using the best of and which will work and perform for years.

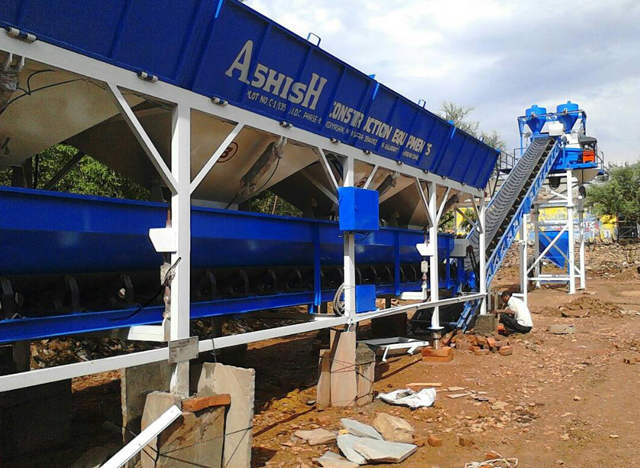

In our Stationary concrete plants, the aggregates are stored in horizontal bins. The gathering conveyor belt runs below the bins where weighing of aggregates takes place and the aggregate are then discharged onto the charging conveyor. Pneumatically operated gates are provided for discharge of the aggregate on to the gathering conveyor. The material is all weighed accurately and transferred to the twin shaft mixer through slinger conveyor. These pneumatics used are of reputed make which ensure long life and superior for your machine.

ASHISH Asphalt Plant are build to perform for years and hence the reason that we are supplying twin shaft mixer as mixing device. Twin shaft mixer is better on mixing and low on maintenance compared to the other type of mixers.

Capacities available are from: 20 m3/ hr. to 90 m3/hr. These plants are designed and build to work in a range of environmental conditions and give maximum productivity.

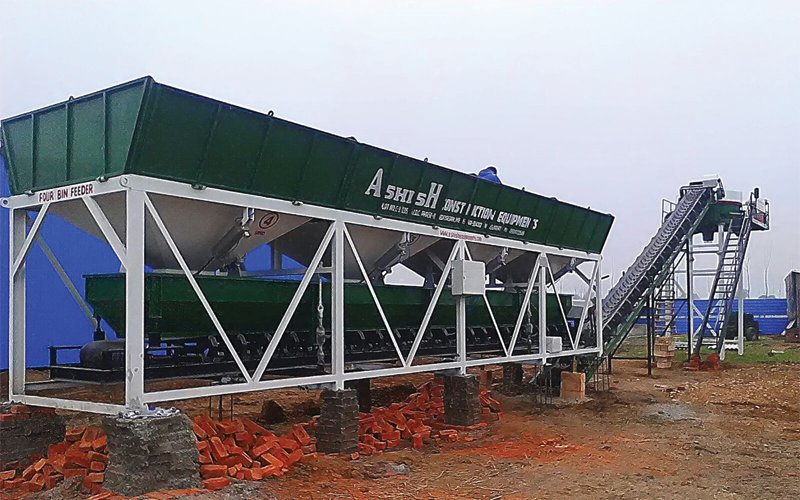

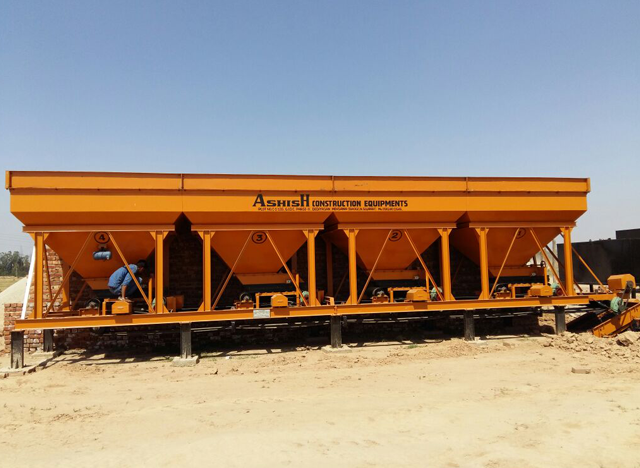

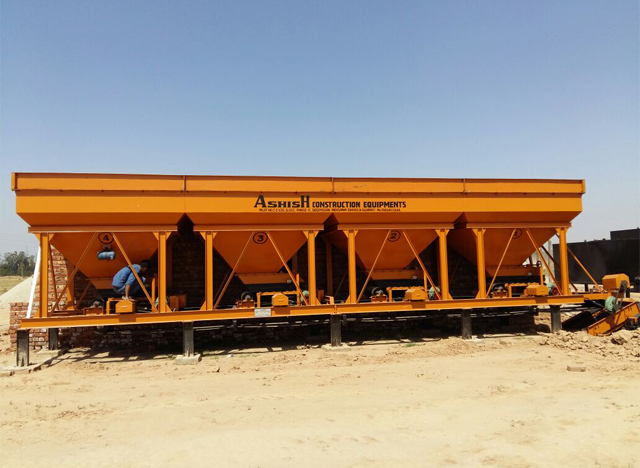

Four bin feeder

Four bin feeder

All the feeder bins have pneumatic operated gates. All the four bins are built on a strong structure. Pneumatic gate open close mechanism is by an air compressor supplied with the plant. The gates are radial type for coarse/ fine discharge. Sand bin is also provided with discharge.

Gathering conveyor

Gathering conveyor

Aggregates are discharged into gathering conveyor. Gathering conveyor is suspended on 4 load cells. As soon as the desired recipe accumulates, gathering conveyor discharges the mix on to the slinger conveyor. A vibratory motor is provided for easy flow of materials. Gathering conveyor of ready mix concrete plants (RMC plants) is provided with idler rollers and return rollers.

Slinger conveyor

Slinger conveyor

Slinger conveyor is for transfer of aggregates from gathering conveyor to the mixing unit.

Weighing system

Weighing system

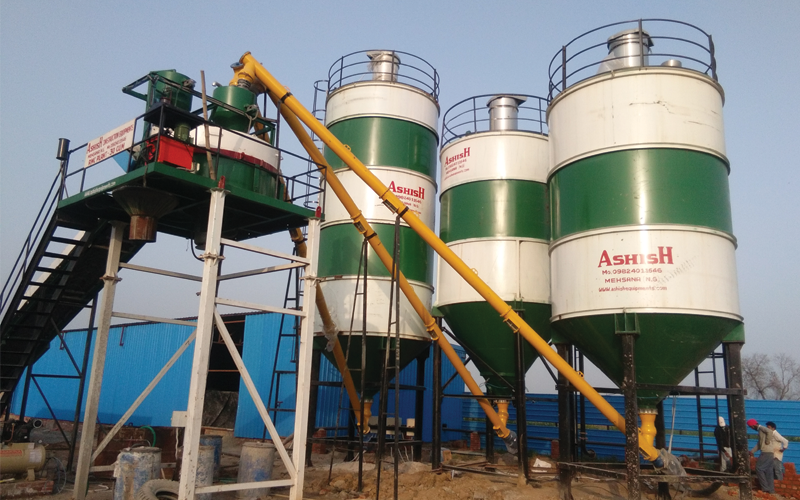

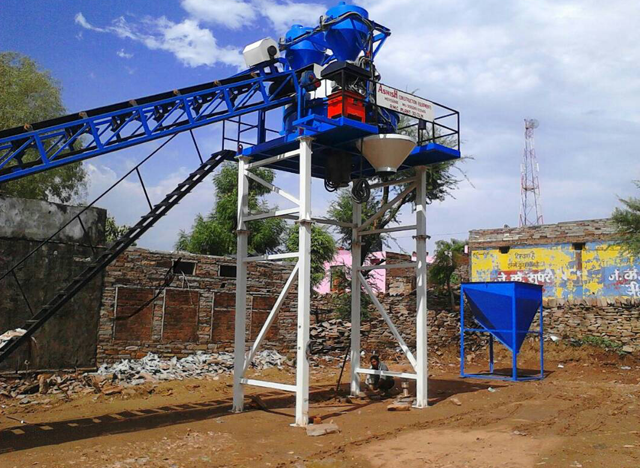

Weighing hopper is mounted on 3 load cells with butterfly valve for discharge. Cement weighing hopper of suitable capacity is provided with pneumatic vibrator and two inlets for two screw conveyors (Screw conveyors make: WAM-Italy or equivalent). Water tank supported on load cells and it has gate with rubber gasket at the bottom. Additives comprise of admixture flask of suitable capacity is supplied with feeding pump. With ASHISH stationary concrete mixers, cement is fed from SILO to the cement weighing hopper.

Twin shaft mixer

Twin shaft mixer

Twin shaft type concrete mixtures ensure proper mixing and maximum output with comparatively low maintenance. Twin shaft Mixers comes in various capacities ranging from 0.5 m³ to 5 m3 and is fixed on the basic structure of the plant. Mixer arms and shell are reinforced with replaceable high wear resistance NI hard liners. The aggregates, cement, water and additives are discharged to the Twin shaft type Mixer. The gate of the twin shaft mixer opens to its entire length therby discharging the entire contents of the mixer quickly. Only after proper and homogeneous mixing the batch is ready to be discharged by hydraulic system.

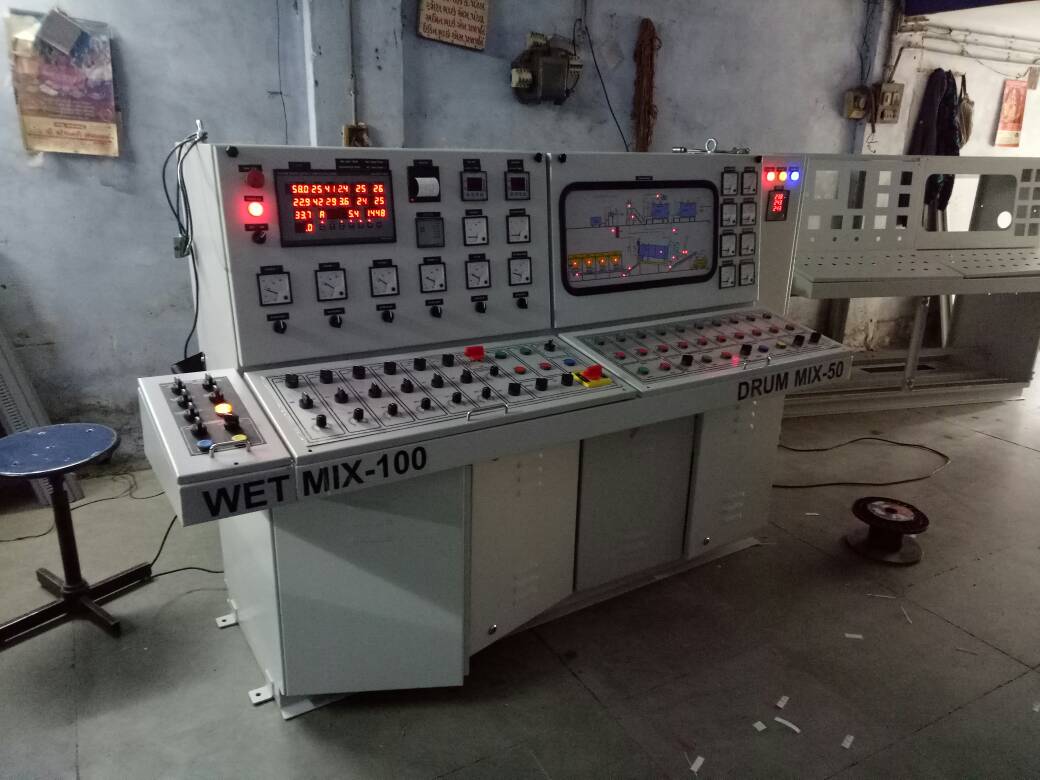

Computerised panel with digital display

Computerised panel with digital display

ASHISH is one batching plant supplier India who sells plants with fully computerized cabin fitted with PLC based controller. SCADA based controller is an option item.
A software which is very user friendly ensures top notch performance. Proxy switch for each control panel. Display of the entire process of control parameters.
Provision for printing entire data like: mix proportion, batch weigh, total number of batches, sub total, gross total, etc. Preset batch controls the number of batches for transit mixer. Provision to store, edit production details, mix proportions up to 99 recipes. Panel works on auto and manual mode.

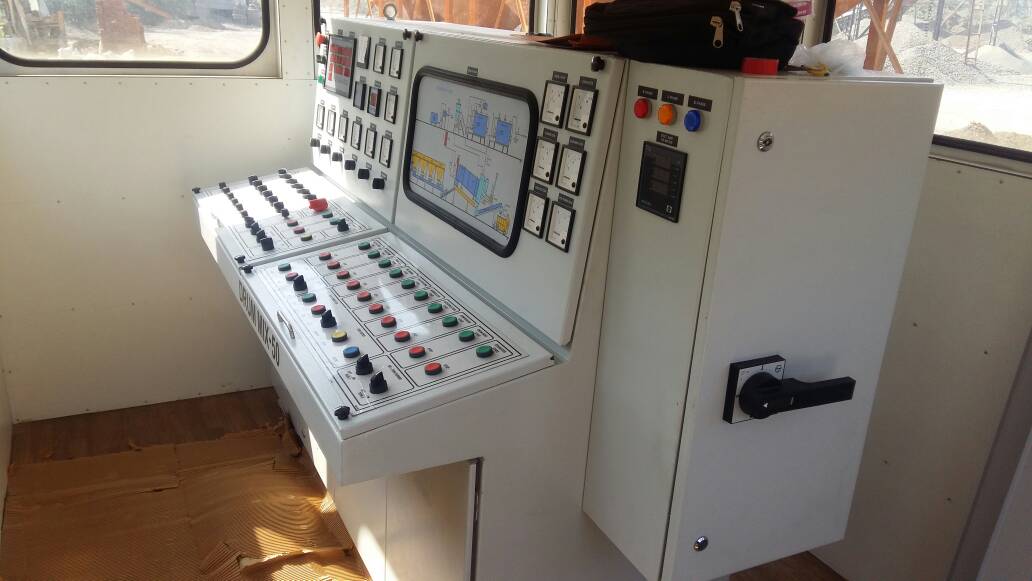

Control cabin

Control cabin

ASHISH is one batching plant supplier India who sells plants with fully computerized cabin fitted with PLC based controller. SCADA based controller is an option item.
A software which is very user friendly ensures top notch performance. Proxy switch for each control panel. Display of the entire process of control parameters.
Provision for printing entire data like: mix proportion, batch weigh, total number of batches, sub total, gross total, etc. Preset batch controls the number of batches for transit mixer. Provision to store, edit production details, mix proportions up to 99 recipes. Panel works on auto and manual mode.
